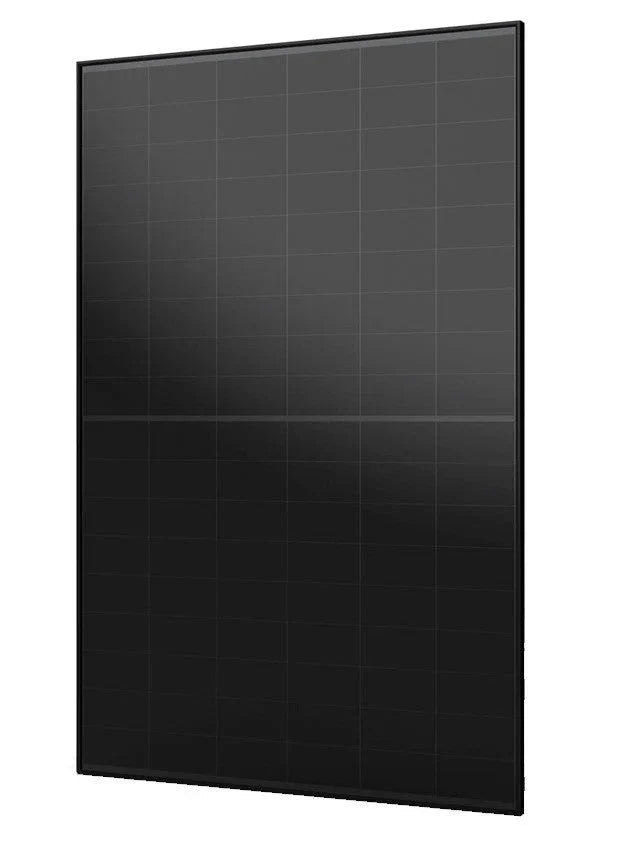

AIKO 450W Neostar 2S N-Type ABC Mono-Glass Black Frame Gen 2 Solar Panel

AIKO 450W Neostar 2S N-Type Mono-Glass ABC 54 Cell All Black MC4 Gen 2 Solar Panel

The AIKO 450W Neostar 2S is a high-efficiency all-black solar panel designed for residential, commercial, farm, garden office and off-grid installations. It uses AIKO’s N-Type ABC back contact cell technology to deliver strong output from a compact 1757 × 1134mm module, with a clean black appearance and no visible front-side busbars.

This 450W mono-glass module is well suited to projects where roof space, appearance and long-term performance matter. The black anodised aluminium frame gives the panel a neat finish, while the 3.2mm tempered front glass, IP68 junction box and robust mechanical load rating make it suitable for demanding outdoor installations.

Key Features

• 450W rated output with 22.6% module efficiency
• N-Type ABC cell technology with no front-side metal grid for improved light capture and a clean all-black appearance
• Cell-level partial shading optimisation to help reduce losses from localised shading
• Low temperature coefficient of Pmax: -0.26%/°C for better performance in warmer conditions
• High temperature restriction for improved operating safety
• Micro-crack resistance for improved long-term reliability
• Original MC4 connectors with 4mm² solar cable, approximately 1200mm long
• 25-year product warranty and 30-year linear performance warranty
• Maximum system voltage: DC 1500V
• Maximum static loading: 5400Pa front and 2400Pa rear

Product Overview

The AIKO Neostar 2S 450W panel uses N-Type ABC cells arranged in a 108-cell layout. ABC, or All Back Contact, places the electrical contacts on the rear of the cell, leaving the front surface free to absorb more light. This improves efficiency and gives the panel a more uniform, premium black finish compared with conventional modules.

The panel has a rated power output of 450W under standard test conditions, with a positive power tolerance of 0 to +3%. It is designed for reliable long-term output, with first-year degradation of no more than 1% and annual degradation from year 2 to year 30 of no more than 0.35%.

For installations where shading may be an issue, AIKO’s partial shading optimisation helps improve real-world generation when part of the panel is affected by shade from nearby objects, roof details, trees or other obstructions.

Awards and Recognition

• BloombergNEF Tier 1 listed manufacturer
• Winner of the 2023 Intersolar Award
• Winner of the 2023 Red Dot Design Award
• 2024 ESG Transparency Award recognition
• Warranty partner: Munich RE

Technical Specifications

Electrical Characteristics

Temperature Ratings

Warranty

• 25-year product warranty
• 30-year linear performance warranty
• First-year degradation: no more than 1%
• Annual degradation from year 2 to year 30: no more than 0.35%
• Guaranteed module performance: 88.85% at year 30

In the Box

• AIKO 450W Neostar 2S N-Type ABC Mono-Glass Solar Panel
• AIKO installation documentation, where supplied by the manufacturer

Installation: Solar panels must be installed by a qualified installer, technician or electrician in accordance with the manufacturer’s instructions and all applicable regulations.

Delivery

• Two working days’ shipping: Order by 5pm on a working day for delivery in two working days. Delivery may take longer for the Scottish Highlands, islands, Northern Ireland and remote areas.

Support

If you are unsure whether this solar panel is suitable for your installation, please contact Energian before ordering via live chat, email info@energian.co.uk or phone 020 8064 0335. We can help check compatibility with your inverter, charge controller, roof mounting system or off-grid setup.

Documents Available to Download

Download AIKO Neostar 2S Mono-Glass Module Datasheet
